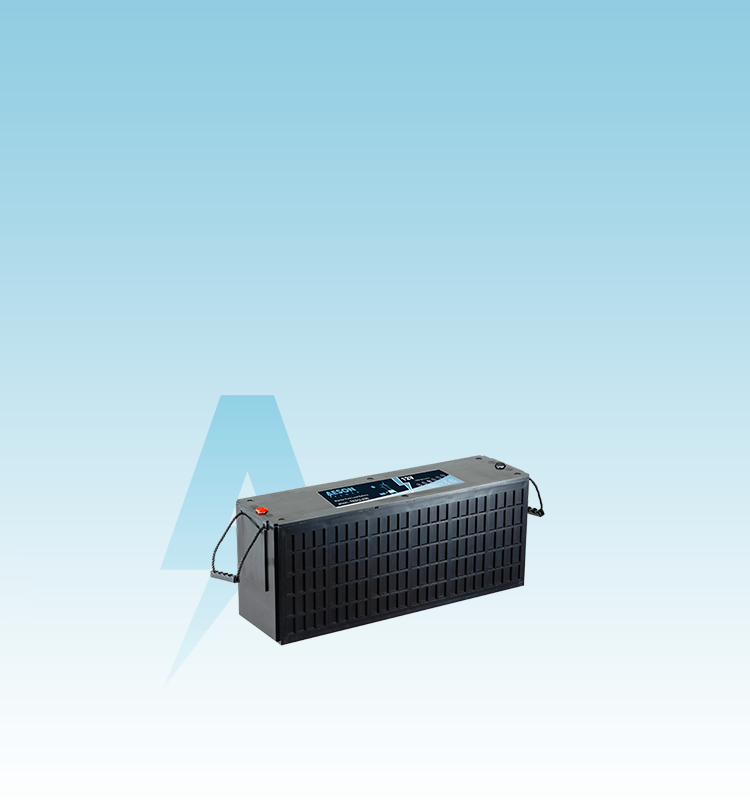

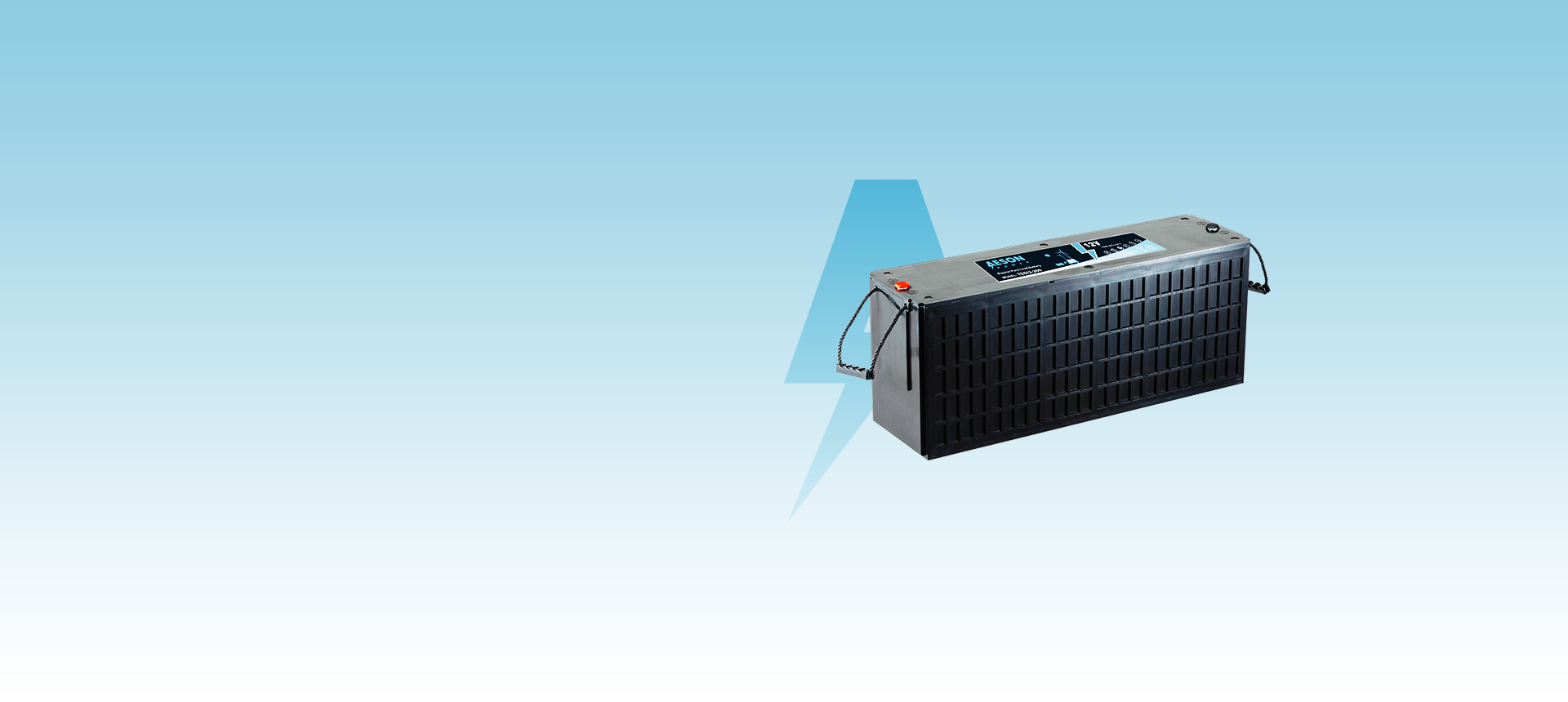

TES Series
· Pure Lead Quasi Bipolar Technology
· Long Cycle Life
· High Charge Efficiency
· High Capacity at Low Temperature
· Long Cycle Life
· High Charge Efficiency
· High Capacity at Low Temperature
Product Lineup
Main Features
-
Pure Lead Quasi Bipolar Technology
-
Maintenance Free
-
Sealed Construction Leakage Proof
-
Fast Charge
-
High Rate Discharge
-
High Capacity at Low Temperature
Technical Specifications
| Item | TES12-150 | TES12-200 |
| Nominal Voltage (V) | 12 (6 cells per unit) | 12 (6 cells per unit) |
| Nominal Capacity (25℃) | 150Ah @ C10 (to 1.80 Vpc) | 200Ah @ C10 (to 1.80 Vpc) |
| Designed Life (25℃) | ≥2100 cycles@ 70% | |
| Designed Floating Life (20℃) | 15 Years | |
| Dimensions | L 510mm × W 225mm × H 208(212)mm | L 646mm × W 185mm × H 260(262)mm |
| Approx. Weight | 63.5 Kg | 81.5 Kg |
| Terminal Type | M8 Copper Insert(torque: 12-13N.m) | M8 Copper Insert(torque: 12-13N.m) |
| Internal Resistance | Approx . 1.2 mΩ (fully charged @ 25°C) | Approx . 1.0 mΩ (fully charged @ 25°C) |
| Ambient Temperature | Discharge: -40~60 °C Charge: -25~60 °C Storage: -25~40 °C | Discharge: -40~60 °C Charge: -25~60 °C Storage: -25~40 °C |
| Self Discharge | Approx. 3% per month @ 20°C | Approx. 3% per month @ 20°C |
| Float Charge Voltage (20~25℃) | 13.5~13.6V(-3mV /°C/cell) | 13.4~13.5V(-3mV /°C/cell) |
| Cyclic Charge Voltage (20~25℃) | 14.3~14.7V | 14.1~14.2V(-3mV /°C/cell) |
| Container Material | ABS(UL94-V0 is optional) | ABS(UL94-V0 is optional) |
