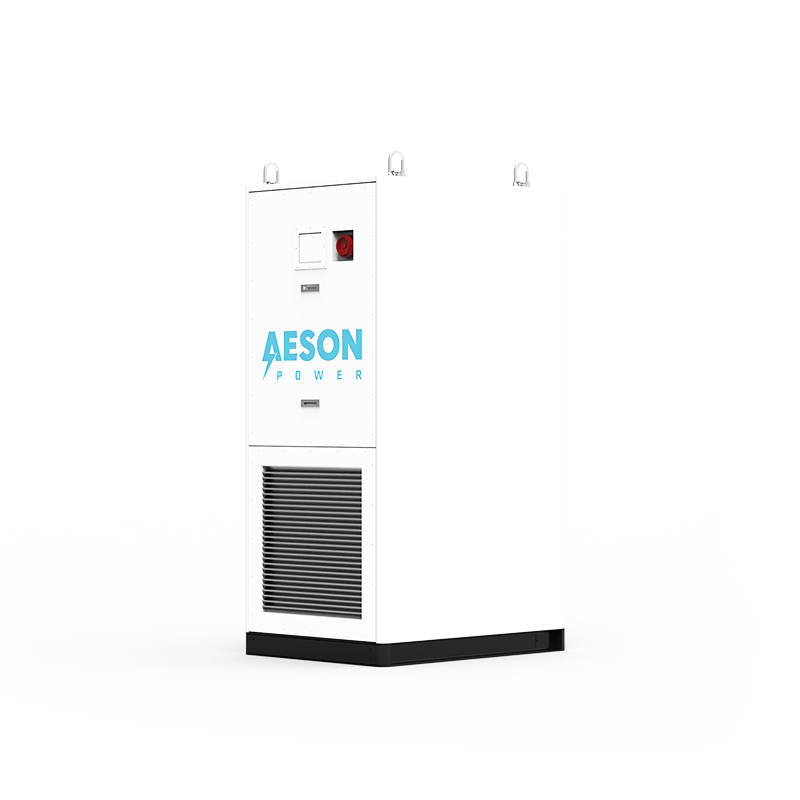

LIBLFP-125/261
· Minimalist Design
· Easy Deployment
· Ultimate Efficiency
· Maximum Safety
· Easy Deployment
· Ultimate Efficiency
· Maximum Safety
Application Scenarios
-
Commercial Buildings
-
Industrial Parks
-
Data Center
-
Hotels and Residences
Technical Specifications
| ltem | LIBLFP-125/261 | |
| AC Information | Rated Voltage | 400V |
| Rated Power | 125kW | |
| Maximum Power | 150kW | |
| Rated Frequency | 50/60Hz | |
| Wiring Method | Three-Phase Four-Wire | |
| DC Information | Rated Voltage | 832VDC |
| Voltage Range | 728~936VDC | |
| Rated Charging Power | 125kW | |
| Rated Discharging Power | 125kW | |
| Rated Capacity | 261.248kWh | |
| Battery Configuration | 1P260S | |
| Battery Type | LFP,314Ah,3.2V | |
| System Information | Power Factor | >0.99 |
| Maximum System Efficiency | 88% | |
| Basic Information | Cooling Method | Smart Liquid Cooling (51% Ethylene Glycol) |
| Fire Protection Medium | Aerosol | |
| Operating Altitude | ≤4000 m | |
| Protection Level | ≥IP54 | |
| Corrosion Resistance Level | C3 | |
| Dimensions(W*D*H) | 1400*1060*2500(mm) | |
| Weight | ≤3t | |
| Communication Protoco | Modbus TCP | |
| Compliance Standards | UN38.3,UN3480,IEC61000,IEC62619,IEC63056, IEC62477,EN62116,IEC60529 | |
