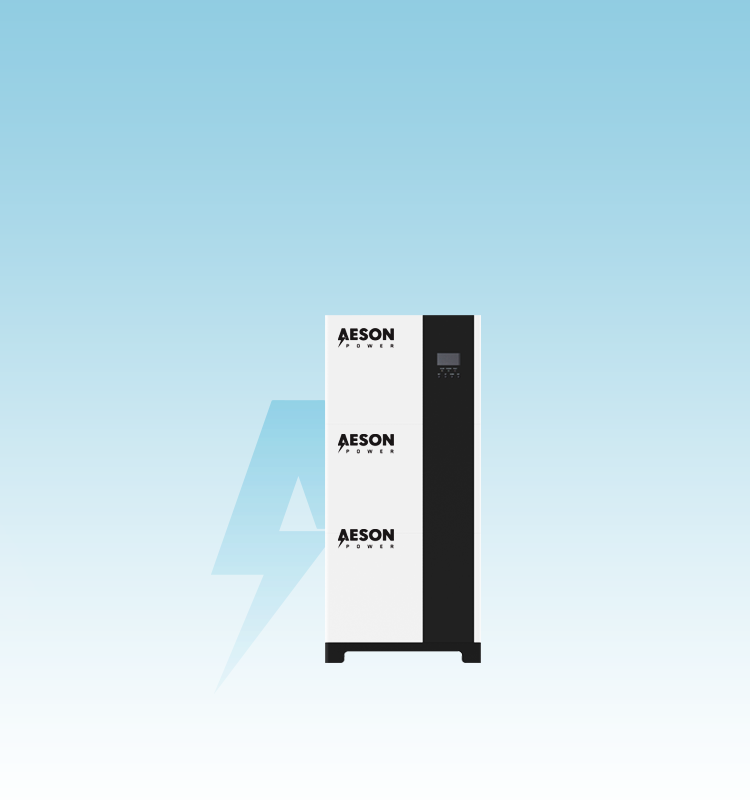

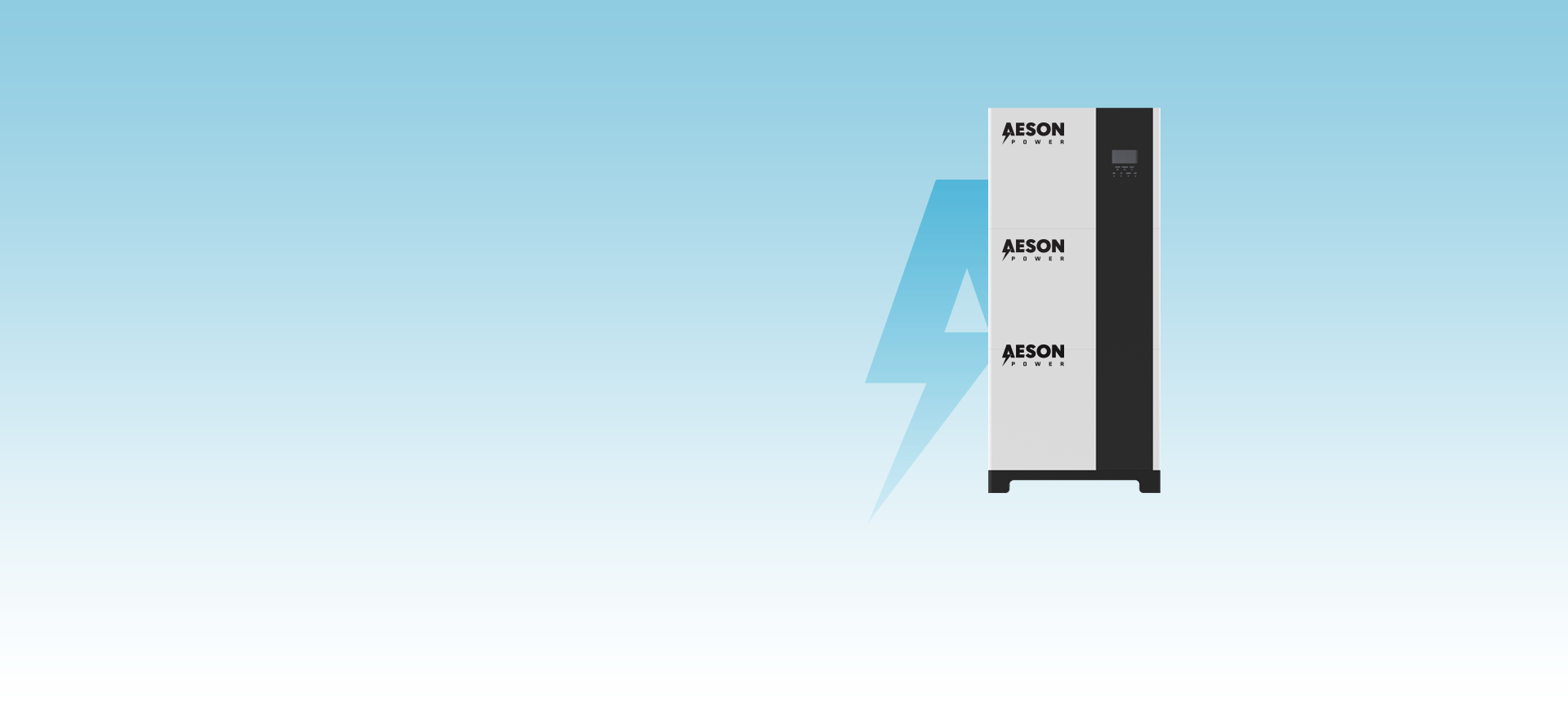

AP-ESS-5K
· Highly Integrated
· Scalability
· Power Output
· Market Compatibility
· Scalability
· Power Output
· Market Compatibility
Product Lineup
Application Scenarios
-
Solar Energy Storage
-
On/off Peak Hours Electricity
Technical Specifications
| ltem | AP-ESS- 5K-5K-A2 | AP-ESS- 5K-10K-A2 | AP-ESS- 5K-15K-A2 | |
| Battery | Battery Module Quantity | 1pc | 2pcs | 3pcs |
| Battery Energy | 5.12kWh | 10.24kWh | 15.36kWh | |
| Battery Capacity | 100Ah | 200Ah | 300Ah | |
| Weight | 83kg | 135kg | 187kg | |
| Dimensions(L*W*H) | 600*165*920mm | 600*165*1340mm | 600*165*1760mm | |
| Cell Chemistry | LiFePO₄ | |||
| Battery Rated Voltage | 51.2V | |||
| Battery Working Voltage Range | 44.8~57.6V | |||
| Maximum Charging Current | 100A | |||
| Maximum Discharging Curent | 100A | |||
| Designed Life-span | 6000 Cycles at 80%DoD | |||
| PC Charge | Parallel Quantity | Maximum 3 Modules | ||
| Designed Life-span | 10 Years | |||
| Solar Charge Type | MPPT | |||
| Maximum Output Power | 5kW | |||
| PV Charging Current Range | 0~80A | |||
| PV Operating Voltage Range | 120~500V | |||
| MPPT Voltage Range | 120~450V | |||
| AC Charge | Maximum Charge Power | 3150W | ||
| AC Charging Current Range | 0~60A(230V Inverter);0~40A(120V Inverter) | |||
| Rated Input Voltage | 220/230Vac(230V Inverter);110/120Vac(120V Inverter) | |||
| Input Voltage Range | 170-280Vac(230VINVERTER);90-140Vac(120VINVERTER) | |||
| AC Output | Rated Output Power | 5kW | ||
| Rated Output Current | 30A(230VINVERTER);42A(120V INVERTER) | |||
| Output Voltage Range | 220V/230V(230V INVERTER);110V120V(120VINVERTER); | |||
50Hz160Hz (Automatically) Overload Current | 35A(230VINVERTER);45A(120V INVERTER) | |||
