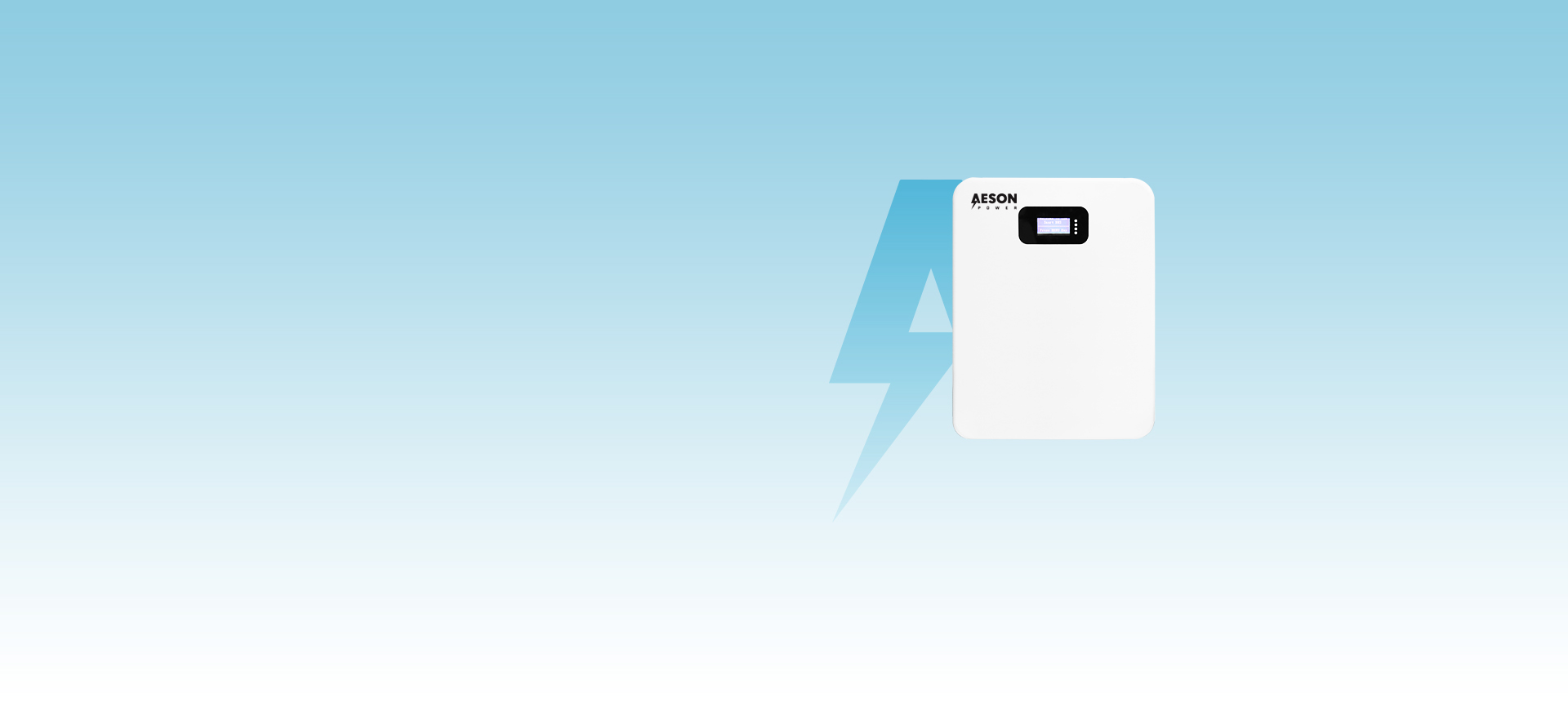

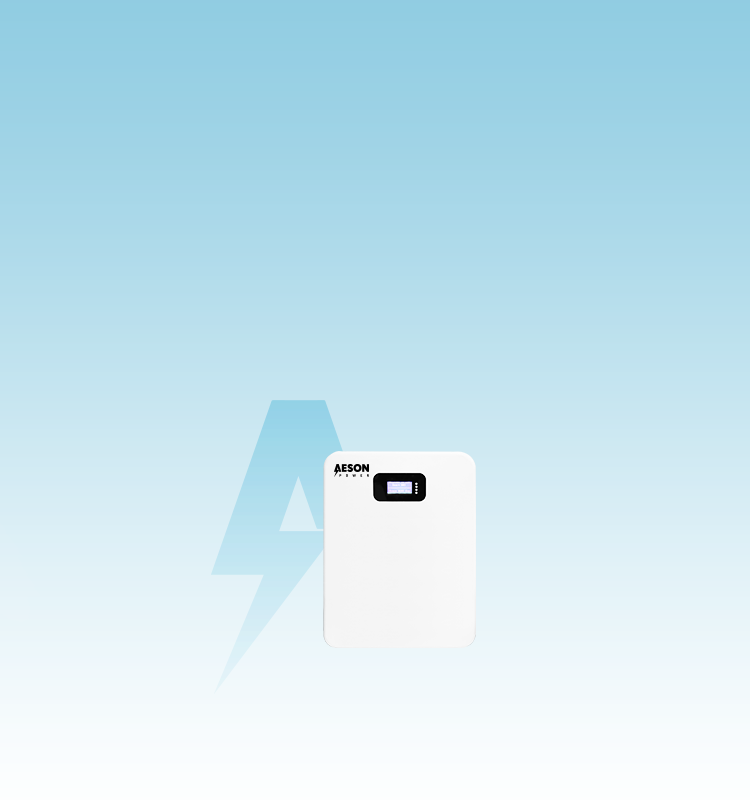

AP-ESS-5KWH
· Battery Specifications
· Communication & Compatibility
· Scalability
· Installation
· Communication & Compatibility
· Scalability
· Installation
Product Lineup
Application Scenarios
-
Indoor
Technical Specifications
| ltem | AP-ESS-5KWH-B1 |
| BATTERY | |
| Cell Chemistry | LiFePO4 |
| Battery Energy | 5.12kWh |
| Battery Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Operatng Voltage Range | 44.8~57.6V |
| Maximum Output Power | 5kW |
| Maximum Charging Current | 100A |
| Maximum Continuous Discharge Curent | 100A |
| Cycle Life | 6000 Cycles(DoD80%) |
| Dimensions(W*D*H) | 440*182*600mm |
| Weight | 54kg |
| Parallel Quantity | Maximum 15Modules |
| Designed Life-span | 10 years |
| Installation | WallMounted |
| Communication | RS485/CANbus/Ethernet/WiFi |
| Matching with lnverters | MEGAREVO/GOODWE/ GRWT/SAM/SUNGROW |
| Certification | UL1973,IEC62619,CE61000,UN38.3 |
| Charging Temperature Range | 0~50℃ |
| Discharge Temperature Range | -20-60℃ |
| Enclosure Protection | IP54 |
| Humidity | ≤85% |
| Atitude | ≤2000m |
| Application | Indoor |
| nverter Choosing | On/Off Grid Single/3 Phases Inverter |
| Heat Management | Air Cooling |
