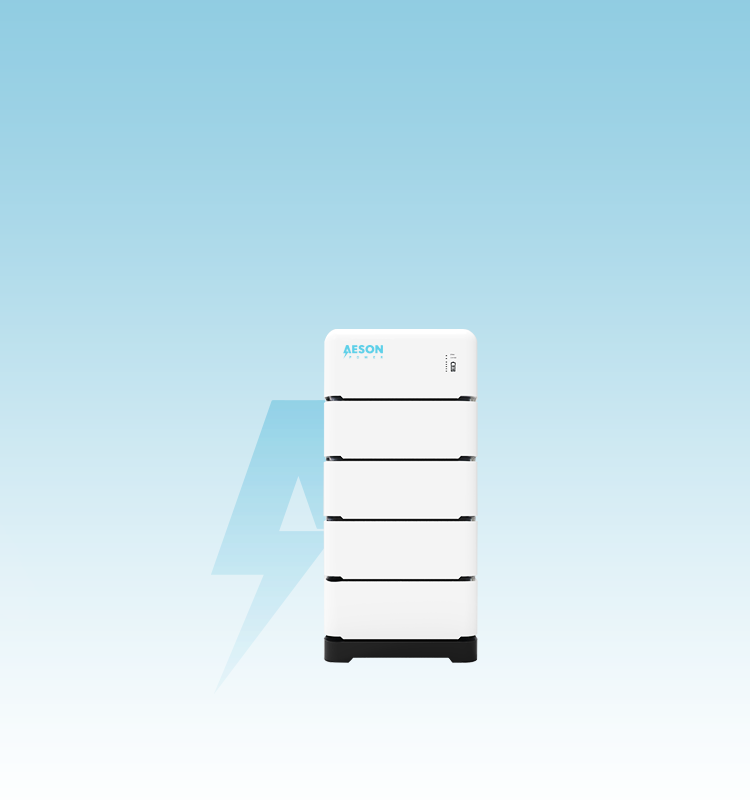

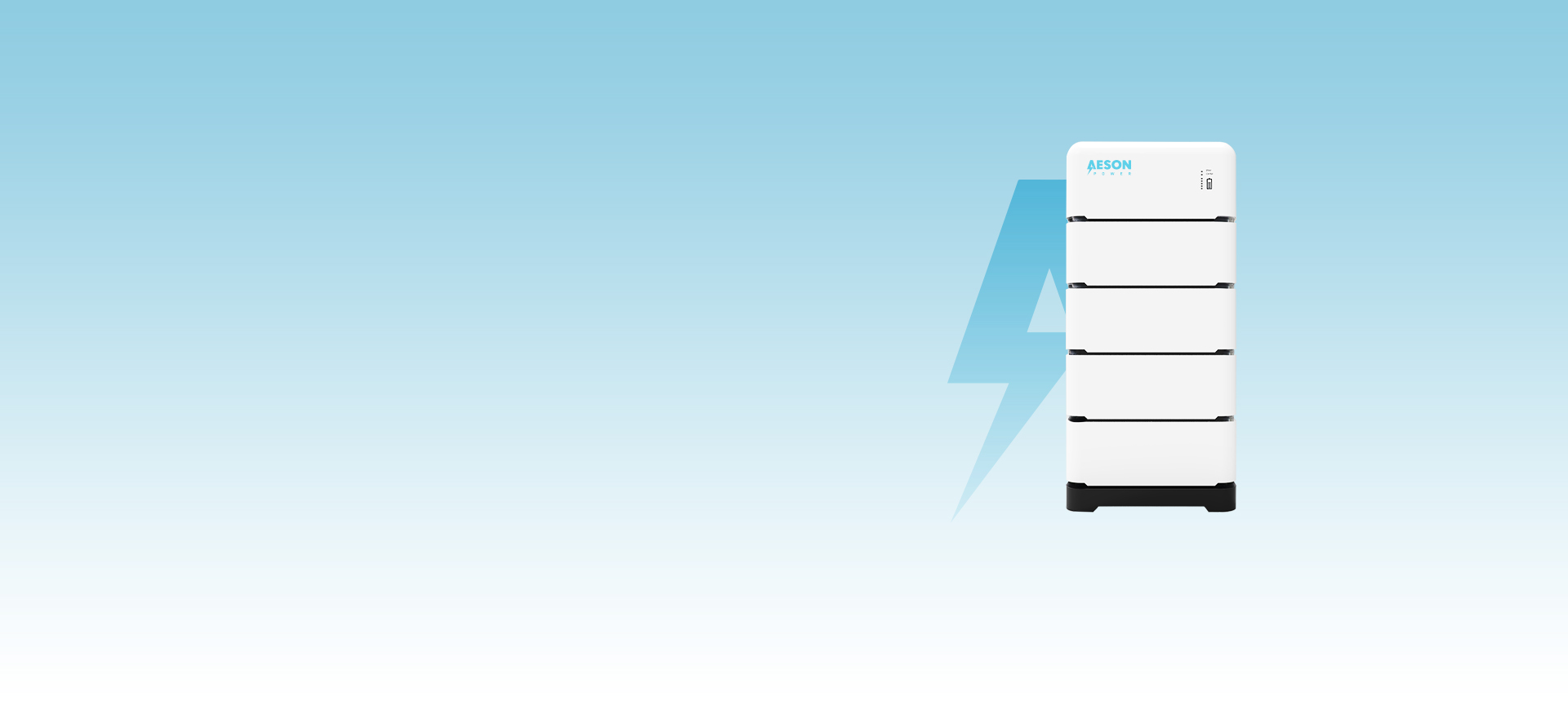

APF204V50
· More Usable Energy
· Flexible Investment
· Remote Monitoring
· Easy Installation
· Flexible Investment
· Remote Monitoring
· Easy Installation
Product Lineup
Application Scenarios
-
Indoor
Technical Specifications
| ltem | APF204V50-HV |
| BATTERY | |
| Cell Chemistry | LiFePO₄ |
| Battery Energy | 10.24kWh |
| Nominal Voltage | 204.8V |
| Nominal Capacity | 50Ah |
| Maximum Charging Current | 50A |
| Maximum Continuous Discharge Current | 50A |
| Maximum Output Power | 10kW |
| HV Controller | 1pc |
| Weight | 105.7kg 106.3kg |
| Dimensions(WxDxH) | 600*160*1130(mm) 600*160*1233(mm) |
| Operating Voltage Range | 179.2~230.4V |
| Cycle Lfe | 6000 Cycles at 80%DoD |
| Designed Life-span | 10 years |
| Installation | Floor Mounted (Horizonaland Stacking) |
| Communication | RS485/CANbus/ Ethermet/WiFi |
| Charging Temperature Range | 0~50℃ |
| Discharge Temperature Range | -22℃~60℃ |
| Enclosure Protection | IP54 |
| Humidity | ≤85% |
| Altitude | ≤2000m |
| System Availability | On/Off Grid Single/ 3 Phases Inverter |
| Heat Management | Air Cooling |
