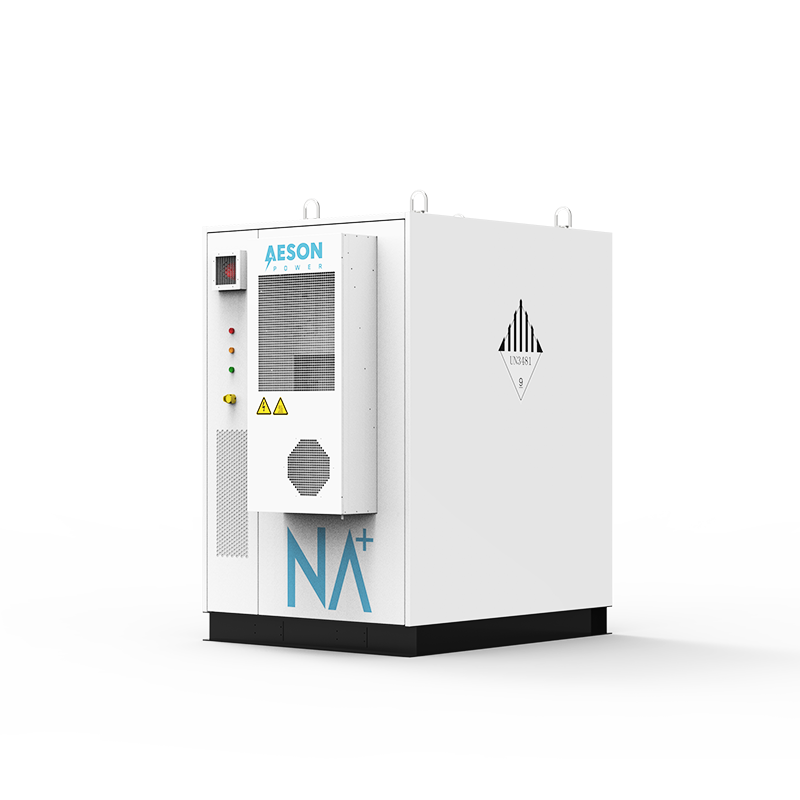

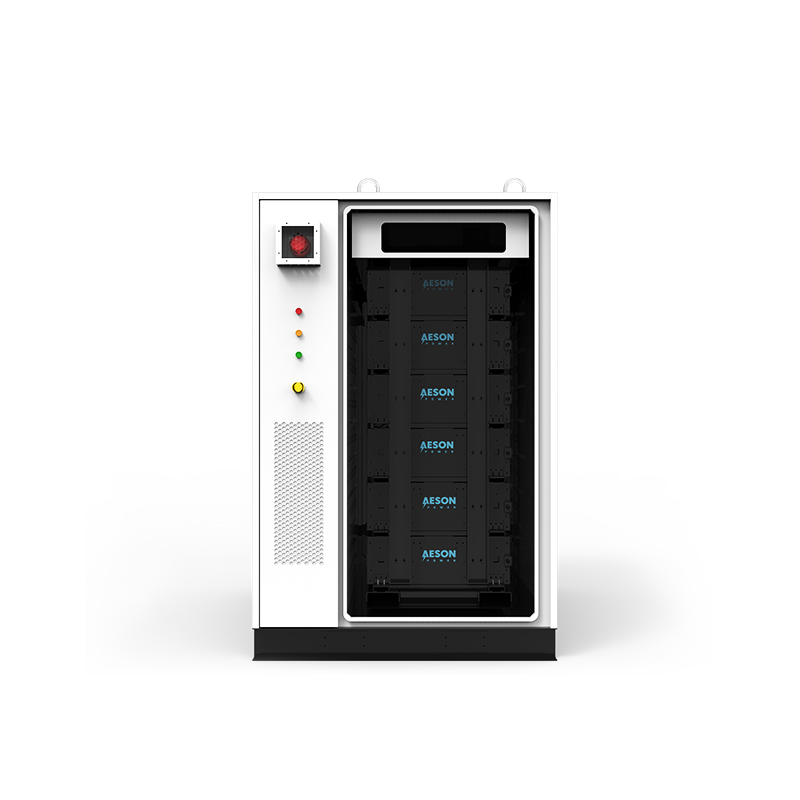

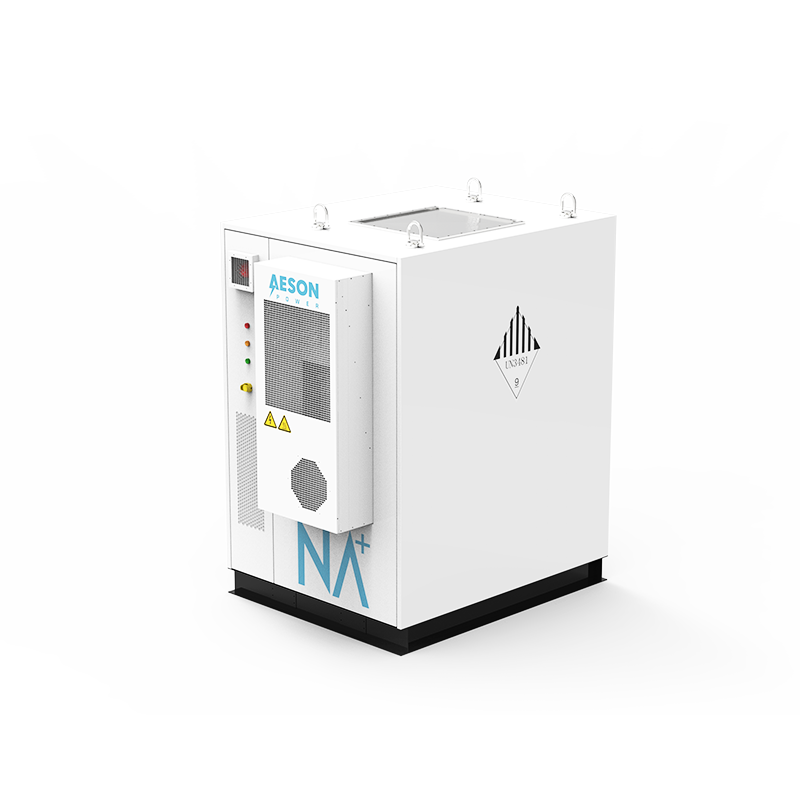

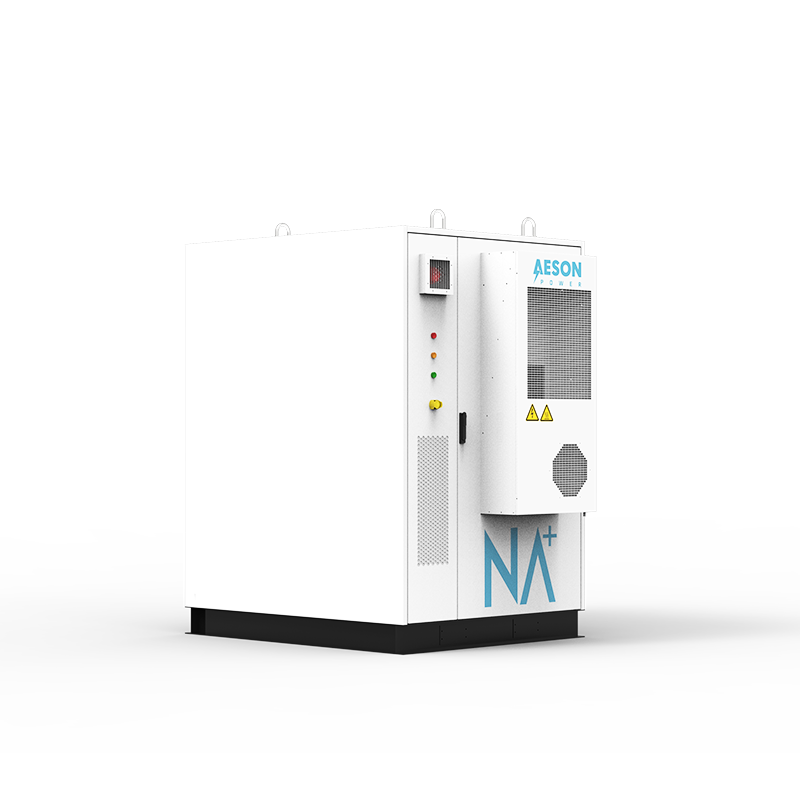

SIBPOM-125/125
· High Energy Efficiency
· Easy Configuration
· High Safety and Intelligence
· Wide Temperature Range
· Easy Configuration
· High Safety and Intelligence
· Wide Temperature Range
Product Lineup
Application Scenarios
-
Commercial Buildings
-
Industrial Parks
-
Data Center
-
Hotels and Residences
Technical Specifications
| Item | SIBPOM- 75/150 | SIBPOM- 125/125 | |
| AC Information | Rated Voltage | 400V | 400V |
| Rated Power | 75kW | 125kW | |
| Maximum Power | 90kW | 150kW | |
| Rated Frequency | 50/60Hz | 50/60Hz | |
| Wiring Method | Three-Phase Four-Wire | Three-Phase Four-Wire | |
| DC Information | Rated Voltage | 837.9VDC | 837.9VDC |
| Voltage Range | 588.00~970VDC | 588.00~970VDC | |
| Rated Charging Power | 75kW | 125kW | |
| Rated Discharging Power | 75kW | 125kW | |
| Nominal Capacity | 150.882kWh | 125.685kWh | |
| Battery Configuration | 1P294S | 1P294S | |
| Battery Type | Sodium-ion, 180Ah,2.85V | Sodium-ion, 180Ah,2.85V | |
| System Information | Power Factor | > 0.99 | > 0.99 |
| Maximum System Efficiency | 90% | 90% | |
| Basic Information | Cooling Method | Smart Air Cooling | Smart Air Cooling |
| Fire Protection Medium | Aerosol | Aerosol | |
| Operating Altitude | ≤ 4000 m | ≤ 4000 m | |
| Protection Level | ≥IP54 | ≥IP54 | |
| Corrosion Resistance Level | C3 | C4 | |
| Dimensions(W*D*H) | 1400*1060*2550(mm) | 1700*1400*2100(mm) | |
| Weight | ≤2.7t | ≤3t | |
| Communication Protocol | Modbus TCP | Modbus TCP | |
| Compliance Standards | UN 38.3, UN 3551, UN3552, IEC 61000, IEC 62619, IEC 62477,IEC 60529 | ||
