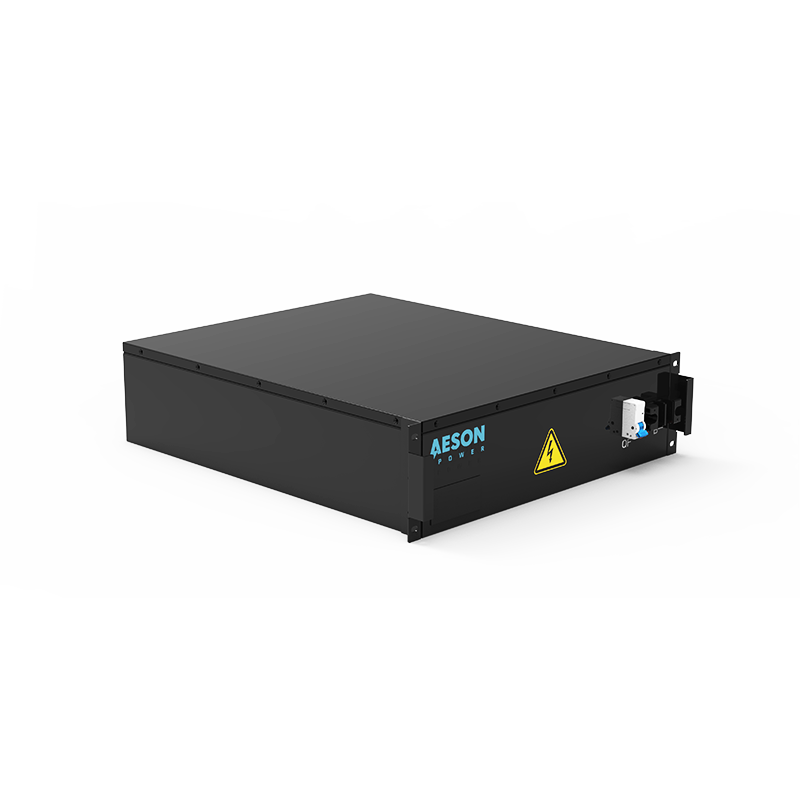

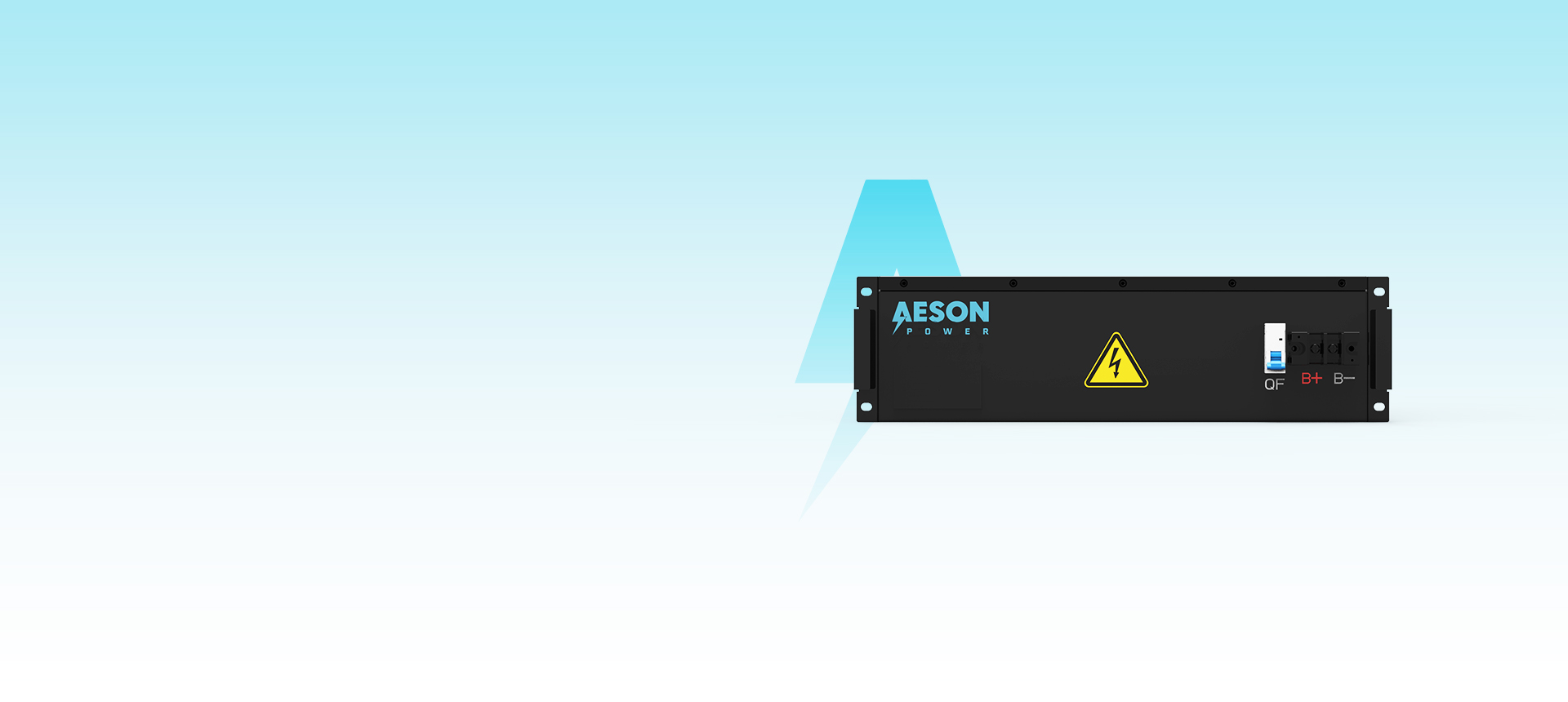

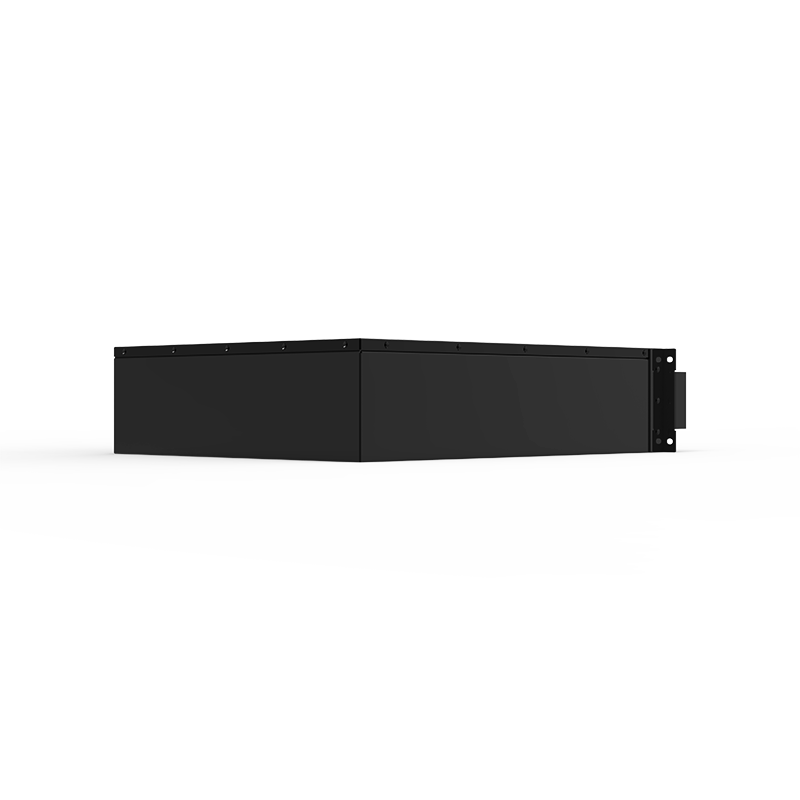

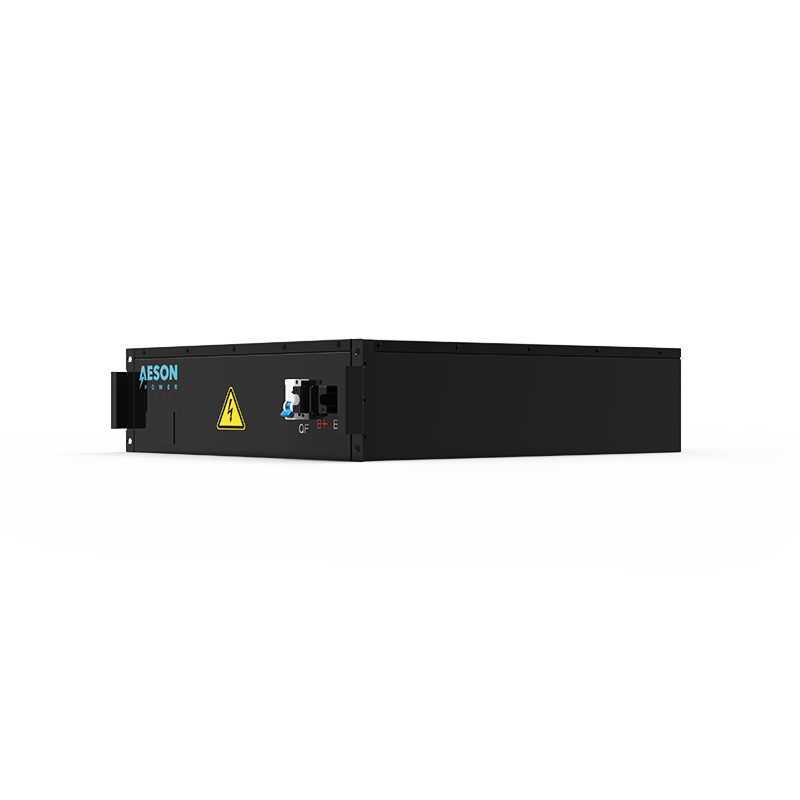

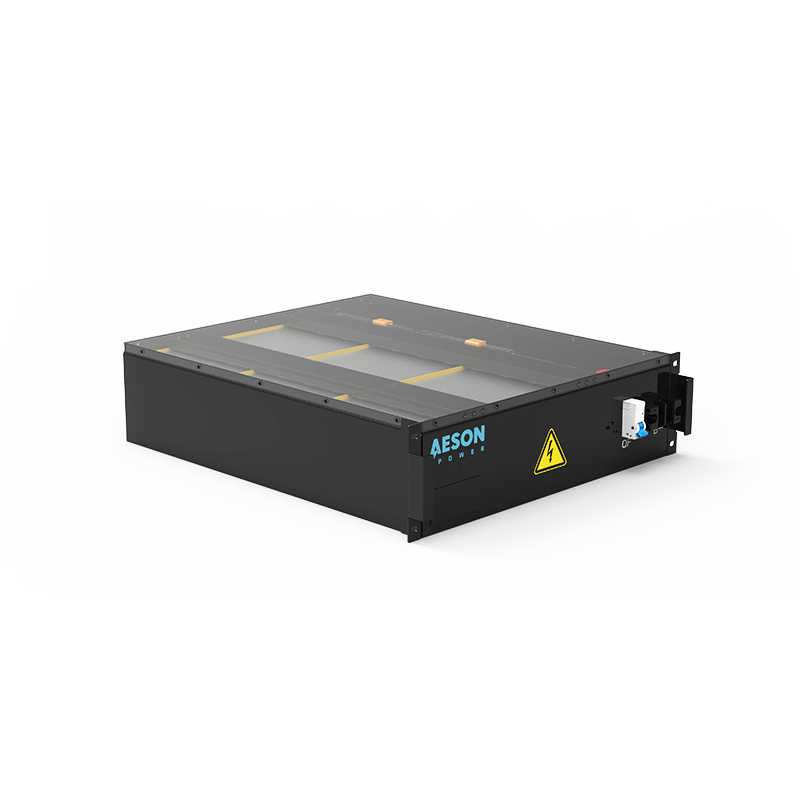

SIBPOM-4850
· High Safety
· Storage & Float Charging
· Versatility in Applications
· Flexible Structure
· Storage & Float Charging
· Versatility in Applications
· Flexible Structure
Product Lineup
Application Scenarios
-
5G Communication Base Station
-
Satellite Ground Station
-
Data Center
-
Microwave Communication Equipment
Technical Specifications
| ltem | SIBPOM-4850 |
| Rated Capacity | 50Ah |
| Nominal Voltage | 48.5V |
| Discharging Cut-off Voltage | 40V(25.5V) |
| Charging Cut-off Voltage | 56.1V(56.1V) |
| Standard Charging | Continuous Current:50A Cut-off Votage:56.1V |
| Standard Discharging | Continuous Current:50A Cut-off Voltage:25.5V |
| Max Continuous Charging Current | 50A |
| Max Continuous Discharging Current | 50A |
| Operating Temp.Range | Charging:-10~50℃ Discharging:-45~65℃ |
| Storage Temp.Range | 25±3℃ |
| Dimensions(W*D*H) | 486*563*133(mm) |
| Weight | 38kg |
| Shipped Product Charging | 0% Power |
| Packaging Material | Cardboard |
