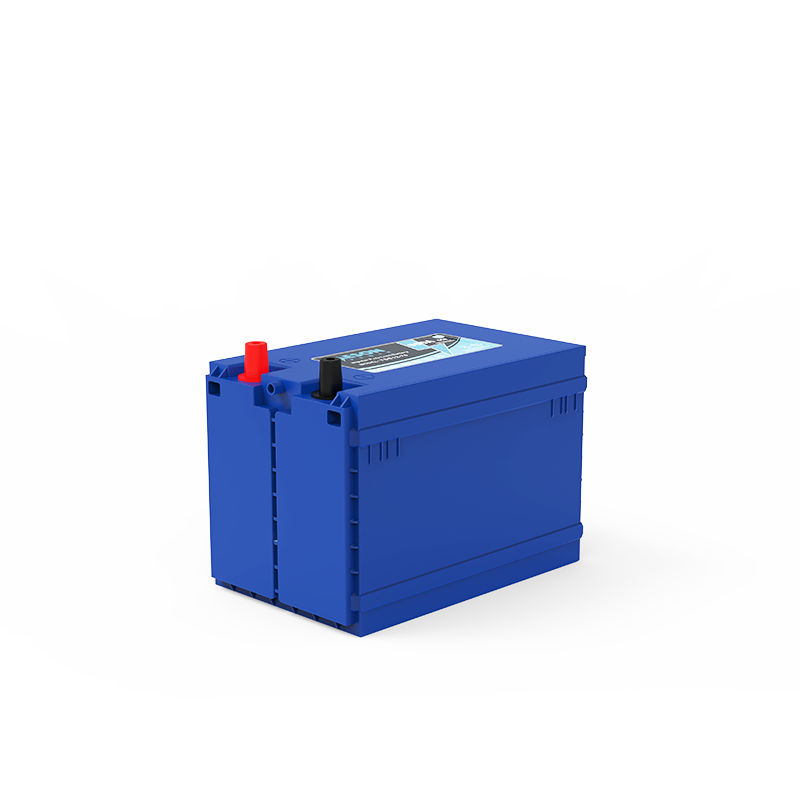

TSS Series
· Pure Lead Quasi Bipolar Technology
· Fast Charge
· Maintenance Free No topping
· Sealed Construction Leakage proof
· Fast Charge
· Maintenance Free No topping
· Sealed Construction Leakage proof
Product Lineup

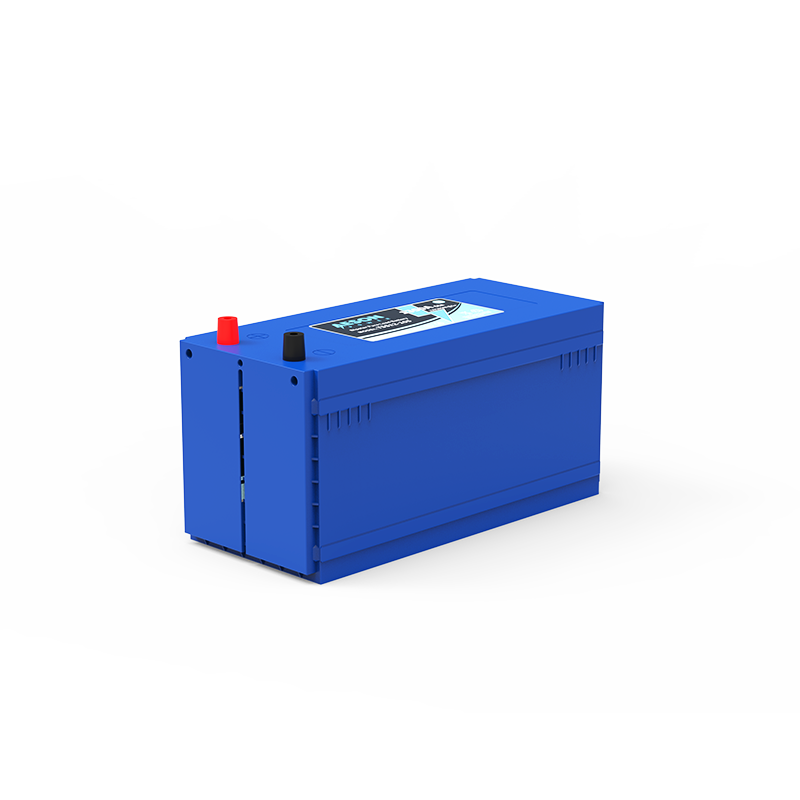

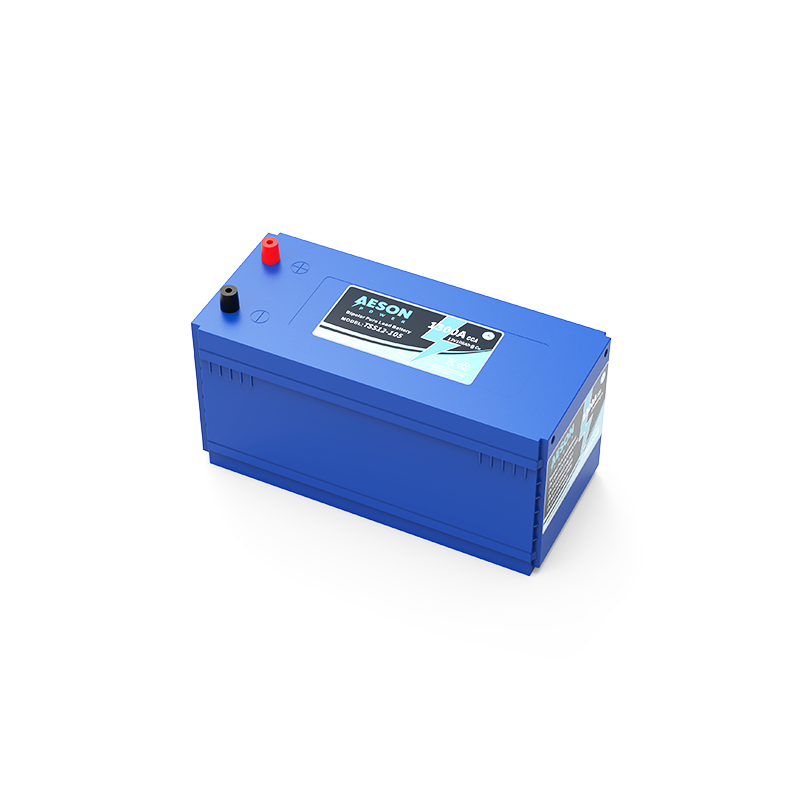

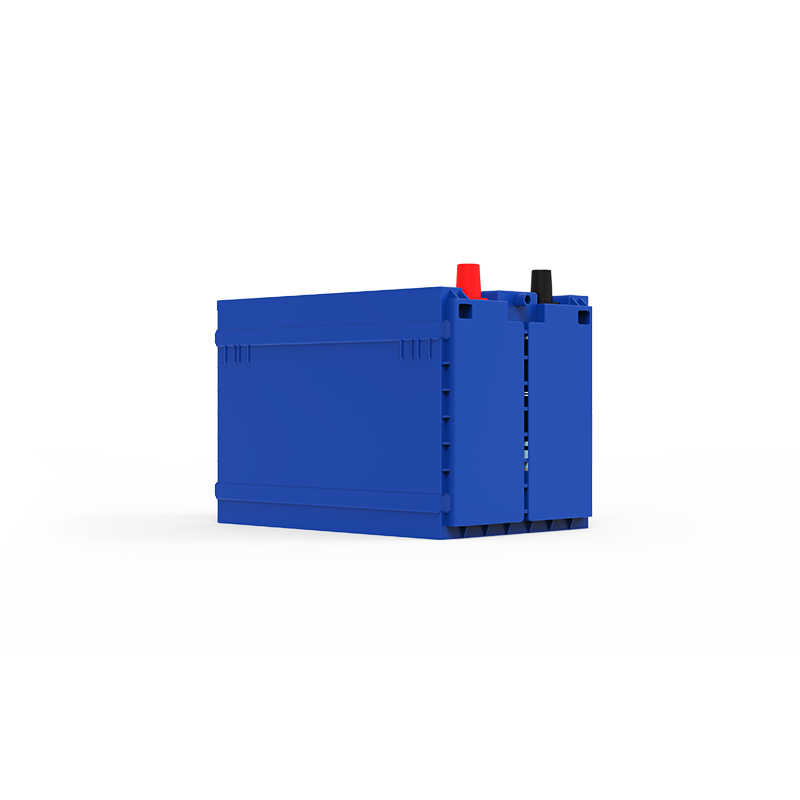

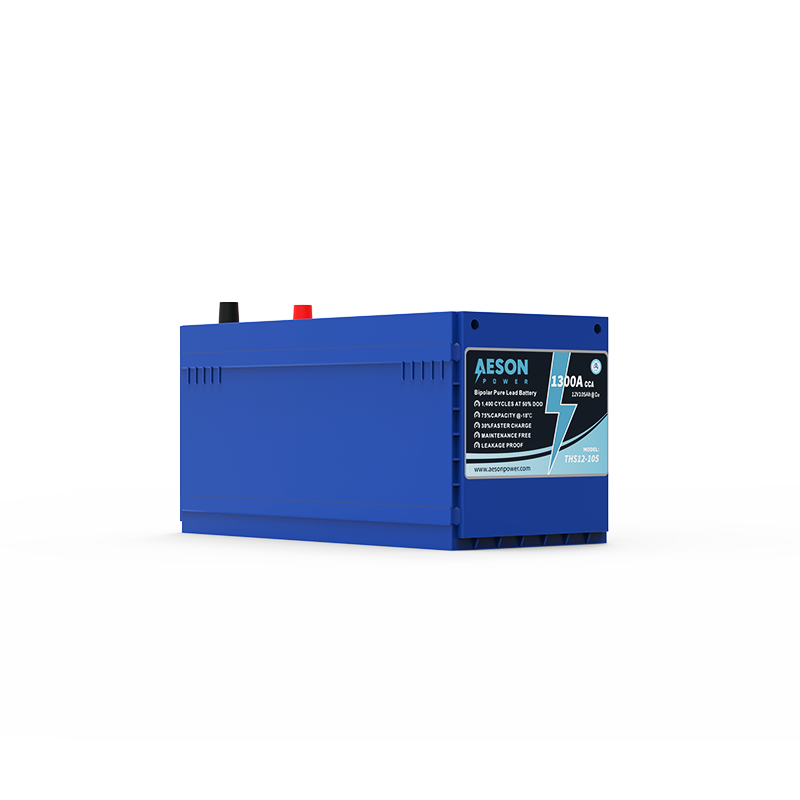

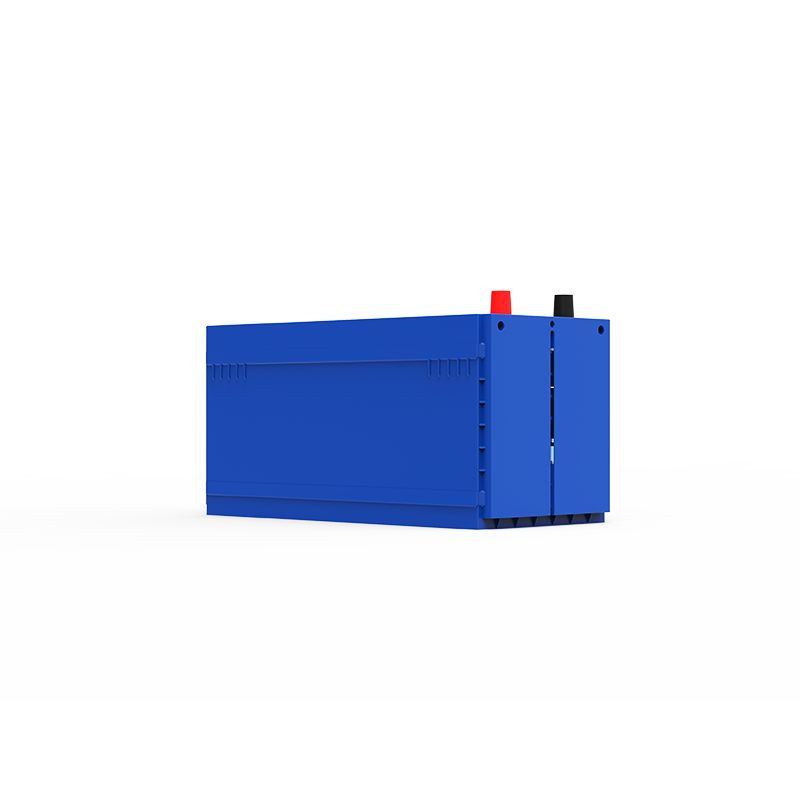

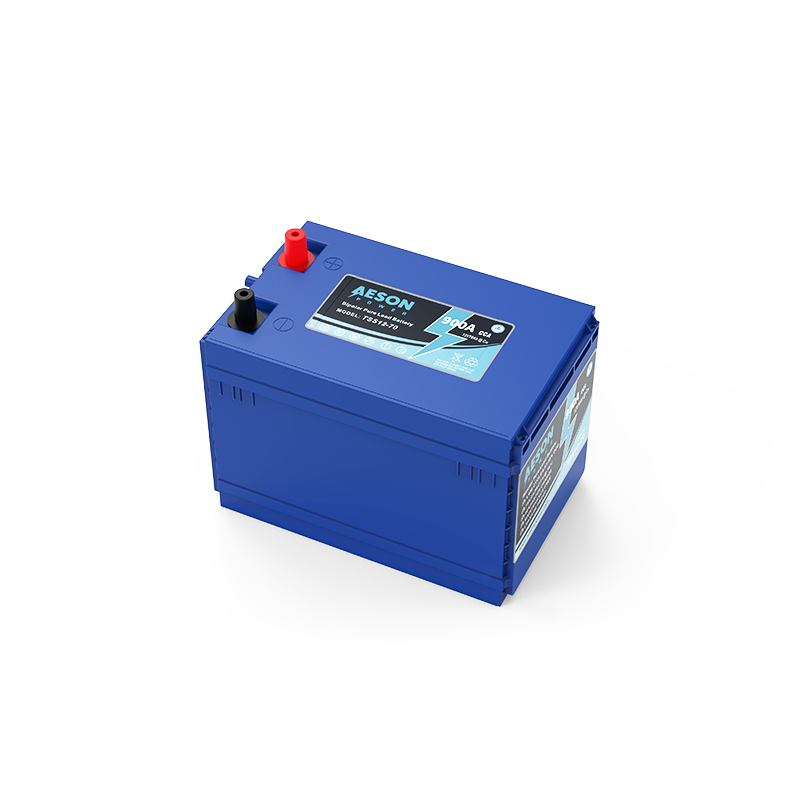

TSS12-70, TSS12-105
Main Features
-
Pure Lead Quasi Bipolar Technology
-
Maintenance Free
-
Sealed Construction Leakage Proof
-
Fast Charge
-
High Capacity at Low Temperature
Technical Specifications
| Item | TSS12-70 | TSS12-105 |
| Nominal Voltage (V) | 12 (6 cells per unit) | 12 (6 cells per unit) |
| Nominal Capacity (25℃) | 70Ah (10.5V cut off) | 105Ah (10.8V cut off) |
| Cycle Life (25℃) | 1400 cycles(50% DoD) | 1400 cycles(50% DoD) |
| Dimensions | L 285mm × W 177mm × H 199(208)mm | L 394mm × W 177mm × H 190(208)mm |
| CCA | 900A | 1300A |
| RC | 135min | 230min |
| Weight | 24.0 Kg | 32.5 Kg |
| Terminal Type | AP terminal | AP terminal |
| Internal Resistance | Approx . 1.40 mΩ (fully charged @ 25°C) | Approx . 1.30 mΩ (fully charged @ 25°C) |
| Operation Temperature | Discharge: -50~60℃ Charge: -40~60℃ Storage: -25~40℃ | Discharge: -50~60 °C Charge: -40~60 °C Storage: -25~40 °C |
| Self Discharge | Around 3% /month @ 25°C | Around 3% /month @ 25°C |
| Float Charge Voltage (20~25℃) | 13.5~13.8V | 13.5~13.8V |
| Cyclic Charge Voltage (20~25℃) | 14.3~14.5V | 14.3~14.5V |
| Container Material | ABS(UL94-V0 is optional) | ABS(UL94-V0 is optional) |
